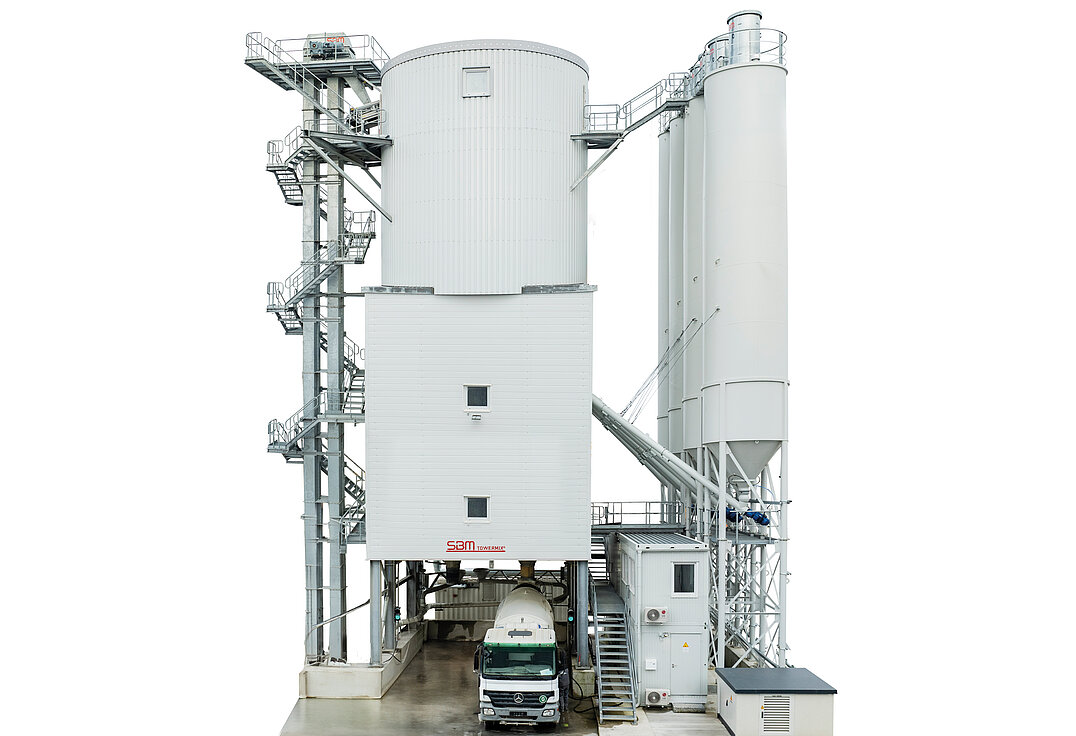

TOWERMIX®
Compact tower mixing plant for maximum efficiency
The proven, standardised and modular plant concept of TOWERMIX® offers maximum performance in minimum space and can be flexibly integrated into almost any location. Standardised assemblies and specially manufactured components guarantee maximum quality and operational reliability. Performance and cost-effectiveness as well as environmental and sustainability aspects are always in our focus. Closed insulating panelling ensures reliable year-round operation. Flexible aggregate feed - by conveyor belt or bucket elevator – result in optimum material supply and maximum efficiency.
Weighing Platform
Mixing Platform
ISO Cladding
Containerised or concrete factory buildings
Feeding System with Bucket Elevator or Conveyor Belt
Aggregate Storage
Weighing Platform
Mixing Platform
ISO Cladding
Containerised or concrete factory buildings
Feeding System with Bucket Elevator or Conveyor Belt
Aggregate Storage
| TOWERMIX® series | D9 | D9 | D10 |
|---|---|---|---|
| Number of mixer | 1 | 2 | 2 |
| Driving lanes | 1 | 2 | 2 |
| System LxW [m] | 6,3 x 6,3 | 8,0 x 8,0 | 9,0 x 9,0 |
| Storage volume aggregates [m3] | Installation height[m] | D9 | D9 | D10 |
|---|---|---|---|---|
| 250 | 22,0 | x | ||
| 350 | 23,5 | x | x | |
| 450 | 25,0 | x | x | |
| 550 | 27,0 | x | ||
| 650 | 28,5 | x | x | |
| 770 | 28,0 | x | ||
| 890 | 30,0 | x | ||
| 1010 | 31,5 | x |
