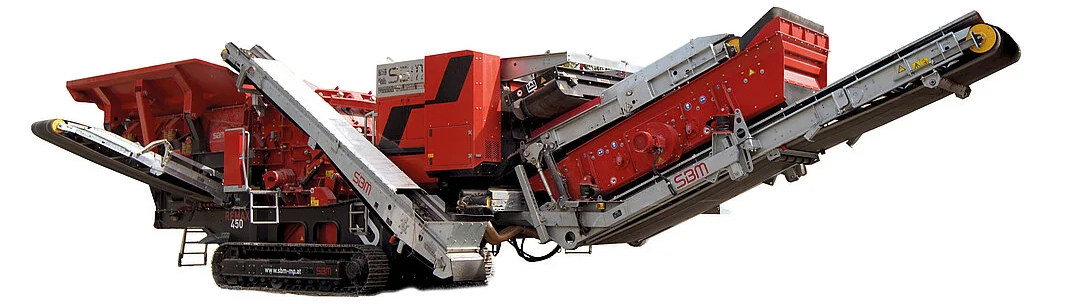

REMAX 450
Mobile impact crushers
Large feed volume - highly efficient primary screen - RCI impact crusher - high-throughput secondary screen: With REMAX 450, SBM is setting new standards for flexible and profitable mobile crushing. Whether as a primary crusher in recycling applications with reinforced concrete demolition material, construction rubble and asphalt or as a compact, versatile secondary crusher for a wide variety of raw materials: We supply top output capacity, premium product quality and low operating costs as a package.
Thanks to intelligent features such as pre-screening, air separation, magnetic separation and optional secondary screening units, up to five high-quality end products can be produced in a single step. The diesel-electric hybrid drive reduces consumption and emissions, while the compact design with hydraulically folding components allows for quick and uncomplicated operation.
1- or 2-Deck Secondary Screening Unit
- 1- or 2-Deck circular vibratory screen with twin deck
- 1-/2-Deck: 1,400 x 3,750 mm
- Fines conveyor
- Discharge height: 3,500 mm
- Stockpile cpacity up to 180 t
- Easy to dismount
Pre-Screening Conveyor
- Discharge height: 2,900 mm
- Stockpile capacity up to 90 t
- Hydraulic folding for transport
Drive Frame and Track Running Gear
- Reinforced and weight-optimized frame structure
- Track running gear integrated in the frame
- Proportional drive
- Speed: max. 0,80 km/h
- Climbing ability: 27%
Crusher Discharge Chute
- Width: 1,350 mm
- Wear lining made of highly wear-resistant steel
- Frequency-converter-controlled drive with cleaning function
Oversize Material Return Conveyor
- Infinitely adjustable belt speed
- Hydraulic swiveling to stockpile
- Discharge seight = 4,400 mm
- Stockpile capacity up to 180 t
- Hydraulic folding for transport
Crusher Discharge Conveyor
- Quality: Rip-Stop
- Discharge height: 3,550 mm
- Stockpile capacity up to 160 t
- Hydraulic folding for Transport
Active Pre-Screening
- 2-Deck circular vibratory screen
- Width: 1,200mm x Lenth: 2,200mm
- Separate/complete discharge/bypass of the screen fractions via manual 3-way-flap
Magnetic Separator
- Permanent or electromagnet (optional)
- Height-adjustable via Remote Control
Frequency-Controlled Feeding Chute
- Width: 1,200 mm
- Wear lining made of highly wear-resistant steel
- Automatic control of the feeding speed according to crusher load
8.0 m³ Feed Hopper
- Highly wear-resistant steel construction
- Three-sided folding walls
1- or 2-Deck Secondary Screening Unit
- 1- or 2-Deck circular vibratory screen with twin deck
- 1-/2-Deck: 1,400 x 3,750 mm
- Fines conveyor
- Discharge height: 3,500 mm
- Stockpile cpacity up to 180 t
- Easy to dismount
Pre-Screening Conveyor
- Discharge height: 2,900 mm
- Stockpile capacity up to 90 t
- Hydraulic folding for transport
Drive Frame and Track Running Gear
- Reinforced and weight-optimized frame structure
- Track running gear integrated in the frame
- Proportional drive
- Speed: max. 0,80 km/h
- Climbing ability: 27%
Crusher Discharge Chute
- Width: 1,350 mm
- Wear lining made of highly wear-resistant steel
- Frequency-converter-controlled drive with cleaning function
Oversize Material Return Conveyor
- Infinitely adjustable belt speed
- Hydraulic swiveling to stockpile
- Discharge seight = 4,400 mm
- Stockpile capacity up to 180 t
- Hydraulic folding for transport
Crusher Discharge Conveyor
- Quality: Rip-Stop
- Discharge height: 3,550 mm
- Stockpile capacity up to 160 t
- Hydraulic folding for Transport
Active Pre-Screening
- 2-Deck circular vibratory screen
- Width: 1,200mm x Lenth: 2,200mm
- Separate/complete discharge/bypass of the screen fractions via manual 3-way-flap
Magnetic Separator
- Permanent or electromagnet (optional)
- Height-adjustable via Remote Control
Frequency-Controlled Feeding Chute
- Width: 1,200 mm
- Wear lining made of highly wear-resistant steel
- Automatic control of the feeding speed according to crusher load
8.0 m³ Feed Hopper
- Highly wear-resistant steel construction
- Three-sided folding walls
LIMESTONE
0/800 auf 0/90
product performance: 450 t/h
diesel consumption: 32 l/h
impact bars: 2 high / 2 deep, tough
RIVER GRAVEL
0/400 auf 0/32
product performance: 210 t/h
diesel consumption: 25 l/h
impact bars: 4 high, chrome-hard ceramic
CONCRETE & BRICK
0/600 auf 0/45
product performance: 220 t/h
diesel consumption: 22 l/h
impact bars: 2 high / 2 deep, tough ceramic
ASPHALT SLABS
auf 0/22
product performance: 200 t/h
diesel consumption: 28 l/h
impact bars: 4 high / chrome-hard ceramic

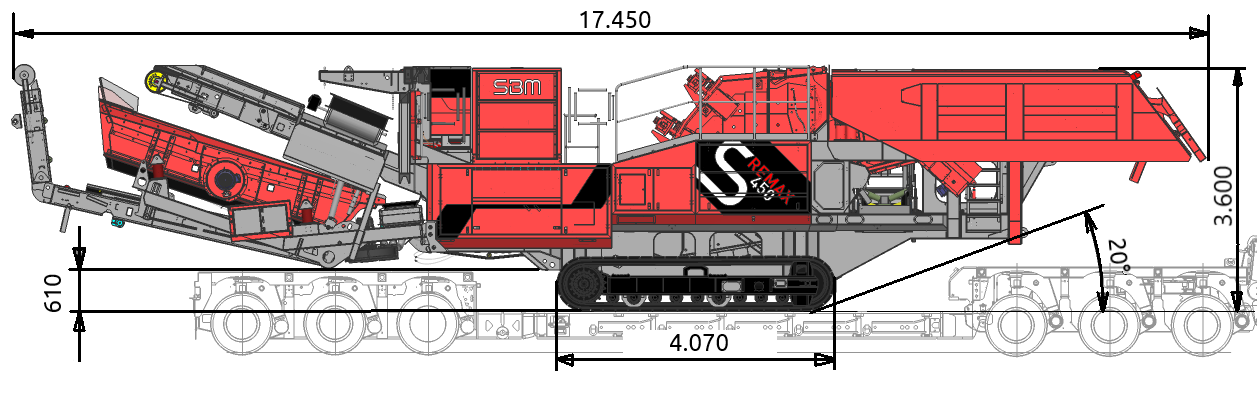

| DIMENSIONS | Length | Width | Height | Weight |
|---|---|---|---|---|
| Without secondary screening unit | 14.500 mm | 3.000 mm | 3.600 mm | 47.000 kg |
| With secondary screening unit 1-deck | 17.450 mm | 3.000 mm | 3.600 mm | 52.500 kg |
| With secondary screening unit 2-deck | 17.450 mm | 3.000 mm | 3.600 mm | 54.300 kg |
| TECHNICAL DATA | |
|---|---|
| Feed capacity (t/h) | up to 450 |
| Inlet crusher (W x H in mm) | 1.260 x 800 |
| Crusher drive (kW) | 160 |
| Diesel generator unit (kVA) | 300 |
| Post-scouring system (1, 2 - deck option) | yes |
| HARD FACTS | |
|---|---|
| Crusher inlet | 1.270 x 800 (1.000) mm |
| Task size (max. spatial diagonal) | 0 - 800 mm (up to 600 kg per individual piece) |
| Task performance | max. 450 t/h |
| Final grain | 0 - 22 to 0 - 90 mm |
| DRIVE SYSTEM | |
|---|---|
| Motor | CUMMINS L9 |
| Operating speed | 4-stage |
| Tank capacity diesel/Adblue | 550l/38l |
| Generator | 300 kVA |
| Electric motor crusher | 160 kW (up to 240 kW peak) |
| Plug-in grid connection (option) | 400V, 300 kVA; 50 - 60 hz |
| Plug-out power supply | 400 V, 63A |
HYBRID PIONEERS – SINCE 1980
Only SBM consistently focusses on the advantages of purely electric drives for conveying, crushing and screening components in mobile crushing plants of all power classes. In autonomous diesel operation, a motor/generator unit supplies the energy at low, constant speeds: low-emission, quiet and extremely economical. All electric drives with their cable and plug-in connections are practically maintenance-free, cause no thermal or standby losses and significantly reduce environmental hazards caused by large volumes of hydraulic oil. In the optional mains operation, you simply flip a switch and everything on the system works as usual - only without diesel.
Everything under control with CRUSH CONTROL
Intuitive operation, fast reactions when necessary, and significant support for machine operators, technicians or dispatchers are the advantages of our CRUSH CONTROL control system with the mobile radio-based app solution.
INTUITIVE AND SAFE
- Simple plant start/stop via classic pressure keys
- Operator guidance and status display via 10-inch colour display
- Quick adjustment of performance parameters by touch screen
OPTIMISED PRODUCTIVITY
- Continuous monitoring of all plant functions
- Load-dependent crusher feeding via frequency-controlled feed chute
- Convenient and safe one-man operation of the complete plant via multifunctional remote control from the excavator/loader
KEEP ALWAYS INFORMED
- Real-time location and machine data via personalised app solution
- Data accessible anytime and anywhere via the internet
- Individually configurable information on operational data, production output (optional) and maintenance status of your plant
PROMPT AND EASY SUPPORT
- Authorised remote access to machine functions by SBM technicians or after-sales service
- Fast troubleshooting or process optimisation without on-site action possible
