REMAX 300

Mobile impact crushers


Large feed volume - highly efficient primary screen - RCI impact crusher - high-throughput secondary screen: With REMAX 300, SBM is setting new standards for flexible and profitable mobile crushing. Whether as a primary crusher in recycling applications with reinforced concrete demolition material, construction rubble and asphalt or as a compact, versatile secondary crusher in a wide variety of raw materials.

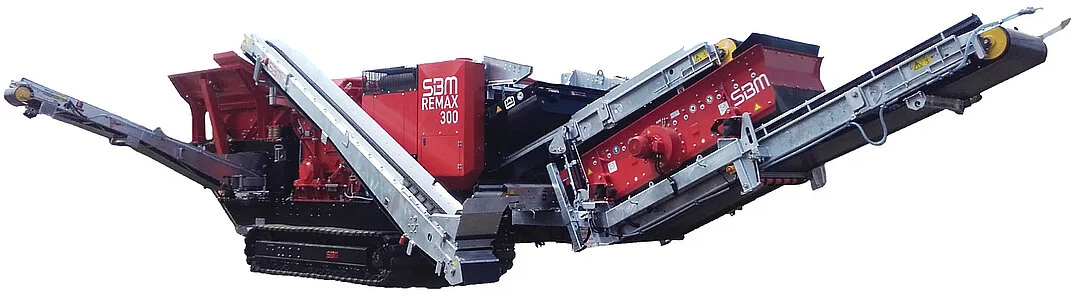

FUNCTIONAL OVERVIEW

1- or 1-2 Deck Post-Screening Unit

  • 1- or 2-Deck circular vibratory screen with twin drive
  • 1-/2-Deck: 1,200 x 3,000 mm
  • Fine conveyor
  • Discharge height: 3,000 mm
  • Stockpile volume up to 150 t
  • Easy to dismount

1-Deck MAX Screening Unit (Option)

  • 1-Deck: 1,400 x 3,600 mm
  • Discharge Height: 3,200 mm
  • Stockpile volume up to 160 t
  • Easy to dismount

Pre-Screening Conveyor (Option)

Discharge height: 3,000 mm

Stockpile capacity up to 100 t

Hydraulic folding for transport

Drive Frame and Track Running Gear

  • Reinforced and weight-optimized frame structure
  • Track running gear integrated in the frame
  • Proportional drive
  • Speed: Max. 0.80 km/h
  • Climbing ability: 27%

Crusher Discharge Chute

  • Width: 1,130 mm
  • Wear lining made of highly wear-resistant steel
  • Frequency-converter-controlled drive with cleaning function

Oversize Return Conveyor

  • Infinitely Adjustable Conveyor Speed
  • Hydraulically Swiveling to Stockpile
  • Discharge Height = 4,400 mm
  • Stockpile Volume: Up to 220 t
  • Hydraulically Foldable for Transport

6.0 m³ Feed Hopper

  • Highly wear-resistant steel construction
  • Three-sided, folding walls

Frequency-Controlled Feeding Chute

  • Width: 1,000 mm
  • Wear lining made of highly wear-resistant steel
  • Automatic control of the feeding speed according to crusher load
  • Option: Step grate 15-35, 30-60 heavy-duty tines

Magnet Separator

  • Permanent or electromagnet (optional)
  • Height-adjustable via Remote Control

Crusher Discharge Conveyor

  • Quality: Rip-Stop
  • Width: 1,000 mm
  • Discharge height: 3,200 mm
  • Stockpile capacity up to 150 t
  • Hydraulic folding for transport

1- or 1-2 Deck Post-Screening Unit

  • 1- or 2-Deck circular vibratory screen with twin drive
  • 1-/2-Deck: 1,200 x 3,000 mm
  • Fine conveyor
  • Discharge height: 3,000 mm
  • Stockpile volume up to 150 t
  • Easy to dismount



1-Deck MAX Screening Unit (Option)



  • 1-Deck: 1,400 x 3,600 mm
  • Discharge Height: 3,200 mm
  • Stockpile volume up to 160 t
  • Easy to dismount

Pre-Screening Conveyor (Option)

Discharge height: 3,000 mm

Stockpile capacity up to 100 t

Hydraulic folding for transport



Drive Frame and Track Running Gear

  • Reinforced and weight-optimized frame structure
  • Track running gear integrated in the frame
  • Proportional drive
  • Speed: Max. 0.80 km/h
  • Climbing ability: 27%

Crusher Discharge Chute

  • Width: 1,130 mm
  • Wear lining made of highly wear-resistant steel
  • Frequency-converter-controlled drive with cleaning function

Oversize Return Conveyor

  • Infinitely Adjustable Conveyor Speed
  • Hydraulically Swiveling to Stockpile
  • Discharge Height = 4,400 mm
  • Stockpile Volume: Up to 220 t
  • Hydraulically Foldable for Transport

6.0 m³ Feed Hopper

  • Highly wear-resistant steel construction
  • Three-sided, folding walls

Frequency-Controlled Feeding Chute

  • Width: 1,000 mm
  • Wear lining made of highly wear-resistant steel
  • Automatic control of the feeding speed according to crusher load
  • Option: Step grate 15-35, 30-60 heavy-duty tines

Magnet Separator

  • Permanent or electromagnet (optional)
  • Height-adjustable via Remote Control

Crusher Discharge Conveyor

  • Quality: Rip-Stop
  • Width: 1,000 mm
  • Discharge height: 3,200 mm
  • Stockpile capacity up to 150 t
  • Hydraulic folding for transport

APPLICATION

natural stone, sand & gravel
LIMESTONE

LIMESTONE
0/700 auf 0/90

product performance: 300 t/h
diesel consumption: 25 l/h
imapct bars: 2 high / 2 deep, tough

natural stone, sand & gravel
RIVER GRAVEL

RIVER GRAVEL
0/400 auf 0/32

product performance: 180 t/h
diesel consumption: 22 l/h
impact bars: 4 high, chrome-hard ceramic

construction debris & recycling
CONCRETE & BRICK

CONCRETE & BRICK
0/600 auf 0/45

product performance: 190 t/h
diesel consumption: 20 l/h
impact bars: 2 high / 2 deep, tough ceramic

construction debris & recycling
ASPHALT PLATES

ASPHALT SLABS
0/600 auf 0/22

product performance: 170 t/h
diesel consumption: 24 l/h
impact bars: 4 high, chrome-hard ceramic

options

  • Single or double wind sifting with frequency converter
  • Plant mains operation (plug-in)
  • Single roller belt weighers (all fractions)
  • Water spraying of crusher in- & outlet & discharge conveyor belt
DIMENSIONSLengthWidthHeightWeight
Without secondary screening unit10.800 mm2.650 mm3.200 mm32.000 kg
With secondary screening unit 1-deck14.860 mm3.000 mm3.200 mm36.800 kg
With secondary screening unit 1-deck MAX15.570 mm3.000 mm3.200 mm37.600 kg
With secondary screening unit 2-deck MAX14.860 mm3.000 mm3.200 mm38.300 kg





REMAX 300 Dimensions
REMAX 300 Dimensions
TECHNICAL DATA
Feed capacity (t/h)up to 300
Inlet crusher (W x H in mm)1.040 x 670
Crusher drive (kW)132
Diesel generator unit (kVA)225
Post-scouring system (1, 2 - deck)yes
HARD FACTS
Crusher inlet1.040 x 700 (900) mm
Task size (max. spatial diagonal)0 - 700 mm (up to 500 kg per individual piece)
Task performancemax. 300 t/h
Final grain0 - 22 to 0 - 90 mm
DRIVE SYSTEM
MotorCUMMINS L9
Operating speed4-stage
Tank capacity diesel/Adblue400l/38l
Generator225 kVA
Electric motor crusher132 kW (up to 200 kW peak)
Plug-in grid connection (option)400V, 225 kVA; 50 - 60 hz
Plug-out power supply400 V, 16A

*All technical information has been carefully prepared but is provided without warranty.

HYBRID PIONEERS – SINCE 1980

Only SBM consistently focusses on the advantages of purely electric drives for conveying, crushing and screening components in mobile crushing plants of all power classes. In autonomous diesel operation, a motor/generator unit supplies the energy at low, constant speeds: low-emission, quiet and extremely economical. All electric drives with their cable and plug-in connections are practically maintenance-free, cause no thermal or standby losses and significantly reduce environmental hazards caused by large volumes of hydraulic oil. In the optional mains operation, you simply flip a switch and everything on the system works as usual - only without diesel.

Impact Crusher REMAX 300
Impact Crusher REMAX 300
Impact Crusher REMAX 300

Everything under control with CRUSH CONTROL

Intuitive operation, fast reactions when necessary, and significant support for machine operators, technicians or dispatchers are the advantages of our CRUSH CONTROL control system with the mobile radio-based app solution.



INTUITIVE AND SAFE

  • Simple plant start/stop via classic pressure keys
  • Operator guidance and status display via 10-inch colour display
  • Quick adjustment of performance parameters by touch screen



OPTIMISED PRODUCTIVITY

  • Continuous monitoring of all plant functions
  • Load-dependent crusher feeding via frequency-controlled feed chute
  • Convenient and safe one-man operation of the complete plant via multifunctional remote control from the excavator/loader



KEEP ALWAYS INFORMED

  • Real-time location and machine data via personalised app solution
  • Data accessible anytime and anywhere via the internet
  • Individually configurable information on operational data, production output (optional) and maintenance status of your plant



PROMPT AND EASY SUPPORT

  • Authorised remote access to machine functions by SBM technicians or after-sales service
  • Fast troubleshooting or process optimisation without on-site action possible
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
CRUSH CONTROL
