EUROMIX® SPACE
mobile space miracle - maximum efficiency and convenience

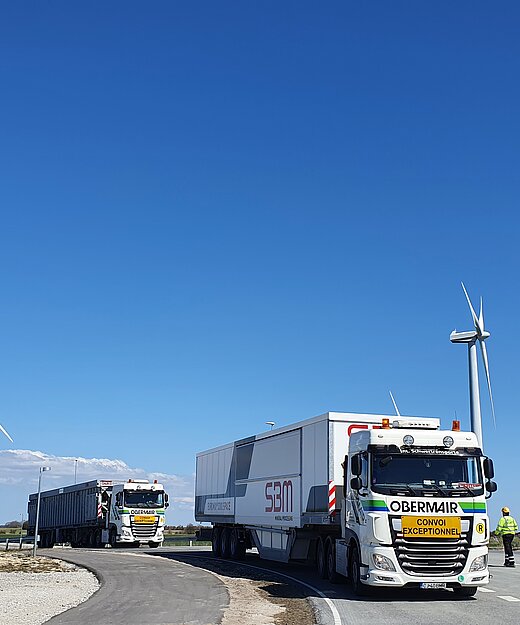

The supermobile concrete mixing plant EUROMIX® 3300 SPACE cleverly combines all the advantages of the globally proven EUROMIX® series with a significantly increased spaciousness allowing maximum access and convenience for maintenance and service purposes.
Thanks to the perfect combination of compact design and powerful-performance technology, SBM is setting new standards with the EUROMIX® plant and asserts itself as a pioneer and market leader in its class. Here, SPACE is not just a name - it's a reality!
Mobile Front Support
Point Supporters for Hopper Unit and Mixing Unit
Modular Mobile Hopper Units
Mobile Cement Silo
Maximum Spaciousness
Globally Unique with Insulated Cladding for Transport
Mobile Front Support
Point Supporters for Hopper Unit and Mixing Unit
Modular Mobile Hopper Units
Mobile Cement Silo
Maximum Spaciousness
Globally Unique with Insulated Cladding for Transport
| EUROMIX® SPACE | 3300 |
|---|---|
| Output capacity of hardened concrete [m³/h] | 145 |
| Mixer output of hardened concrete [m³/batch] | 3,33 |
| Filling volume mixer [l/batch] | 5000 |
| Transport width [m] | 3,00 |
| TYP | 84 L | 168 L | 104 L | 108 L | 184 L | 410 H | 540 H |
|---|---|---|---|---|---|---|---|
| Transport width [m] | 3,00 | 3,00 | 3,00 | 3,50 | 3,50 | 3,00 | 3,00 |
Standard [m³] | 4 x 21 | 4 x 42 | 4 x 26 | 4 x 27 | 4 x 46 | 4 x 103 | 4 x 135 |
| Storage volume [m³] | 84 | 168 | 104 | 108 | 184 | 410 | 540 |
| Bins | 4 | 4 - 7 | 4 | 4 | 4 - 7 | 4 - 8 | 4 - 8 |
