EUROMIX® DUO
maximum performance due to double power

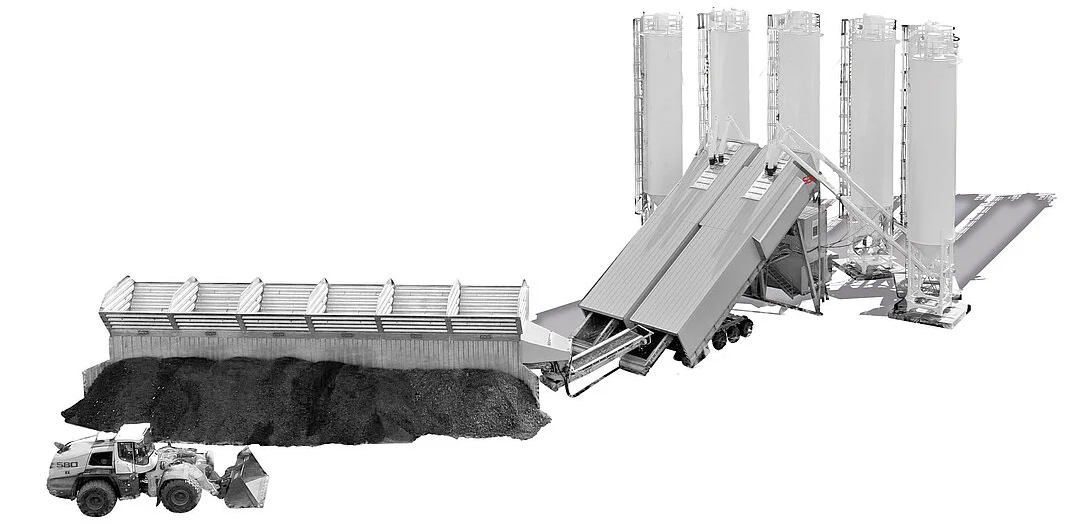

EUROMIX® DUO is the efficient and sustainable solution for mobile mass concrete production directly on the construction site. Just-in-time production on site avoids long transport routes, which reduces CO₂ emissions by up to 25 %. The plant is characterised by an impressive output capacity of up to 300 m³/h of concrete in DUO operation. It is ready for use round the clock and in all weather conditions, which guarantees a high degree of flexibility and fast response times.
Easy Relocation on own 3-Axle-Chassis
Concrete Discharge from Two Mixers onto One Truck
One Control Unit for Two EUROMIX® Plants in Duo-Mode
No Fixed Foundations Required

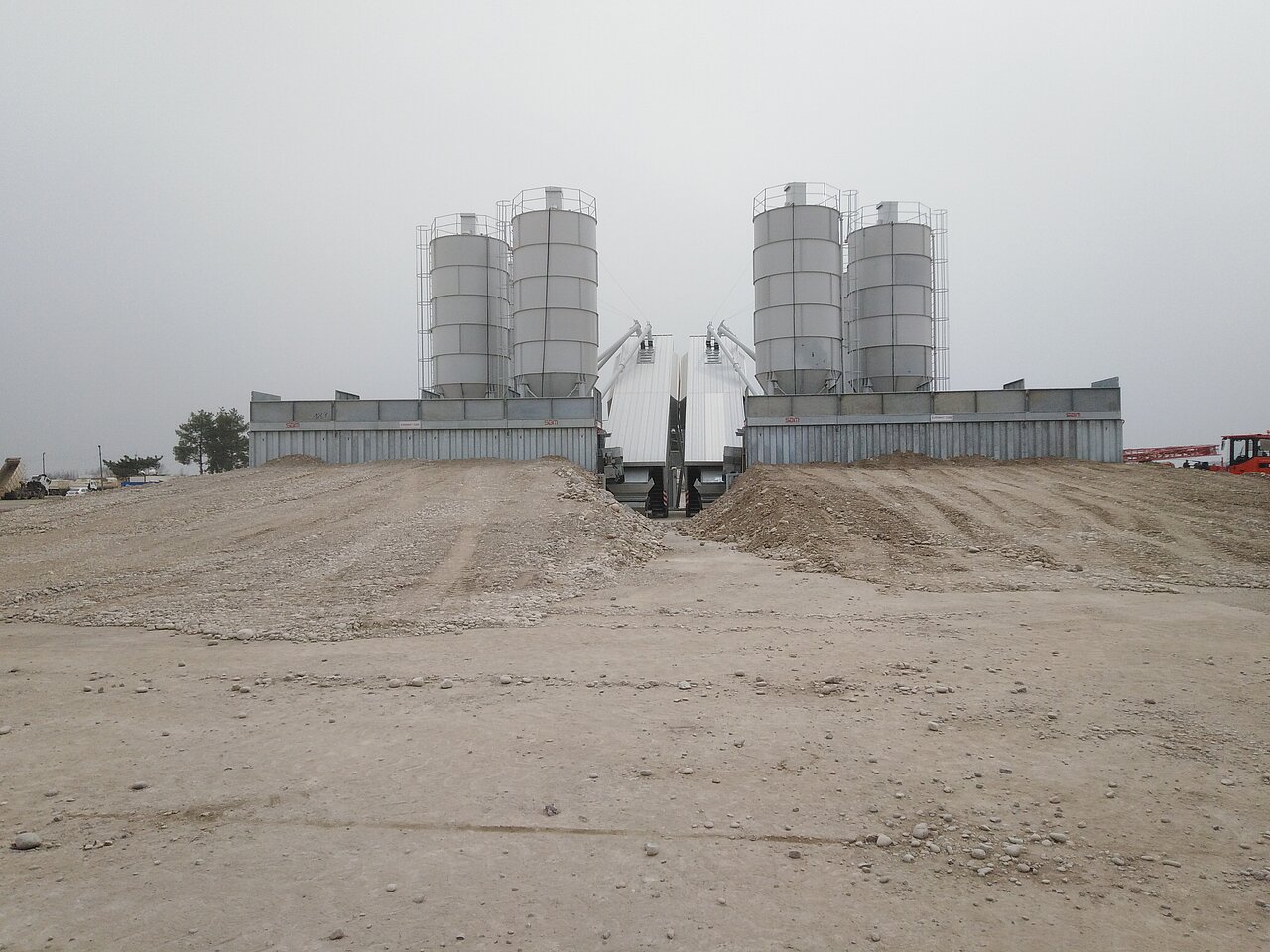

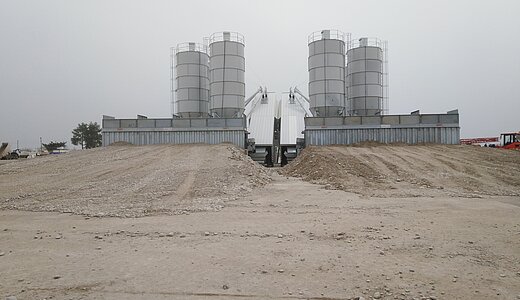

2 Pc. EUROMIX® in DUO-Installation
Version with One or Two Hopper Units
Easy Relocation on own 3-Axle-Chassis
Concrete Discharge from Two Mixers onto One Truck
One Control Unit for Two EUROMIX® Plants in Duo-Mode
No Fixed Foundations Required
2 Pc. EUROMIX® in DUO-Installation
Version with One or Two Hopper Units
| EUROMIX® DUO | 3000 | 4000 |
|---|---|---|
| Output capacity of hardened concrete [m³/h] | 230 | 300 |
| Mixer output of hardened concrete [m³/batch] | 2x 3,00 | 2x 4,00 |
| Filling volume mixer [l/batch] | 2x 4.500 | 2x 6.000 |
| Transport width [m] | 3,00 | 3,50 |
| TYP | 84 L | 168 L | 104 L | 108 L | 184 L | 252 L |
|---|---|---|---|---|---|---|
| Transport width [m] | 3,00 | 3,00 | 3,00 | 3,50 | 3,50 | 3,00 |
Standard [m³] | 4 x 21 | 4 x 42 | 4 x 26 | 4 x 27 | 4 x 46 | 6 x 42 |
| Storage volume [m³] | 84 | 168 | 104 | 108 | 184 | 252 |
| Bins | 4 | 4-7 | 4 | 4 | 4-7 | 6 |
options
- 90° installation
- Water container with pressure booster station
- Video surveillance
- And much more...
