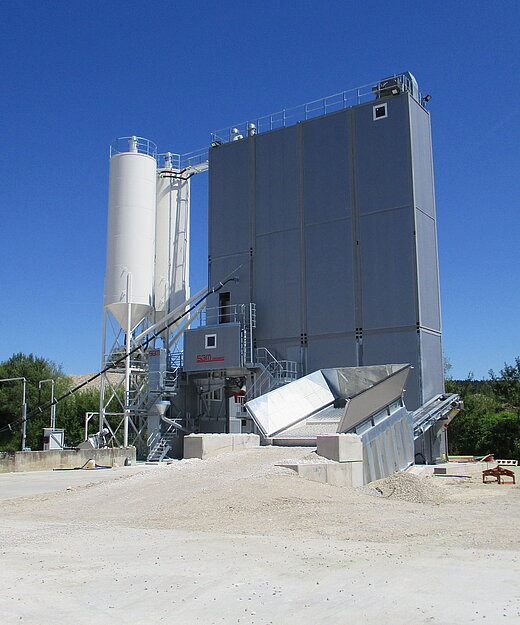

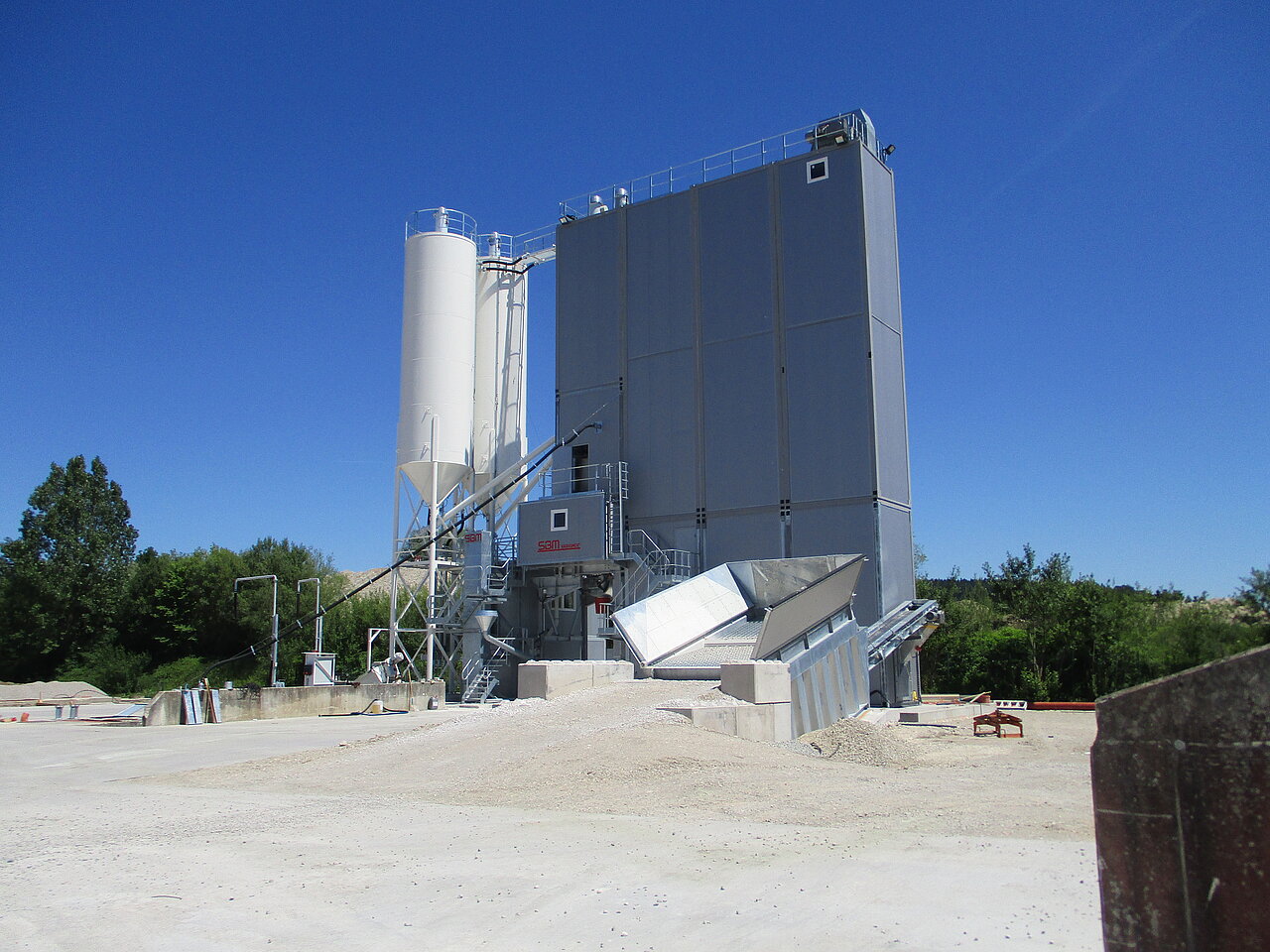

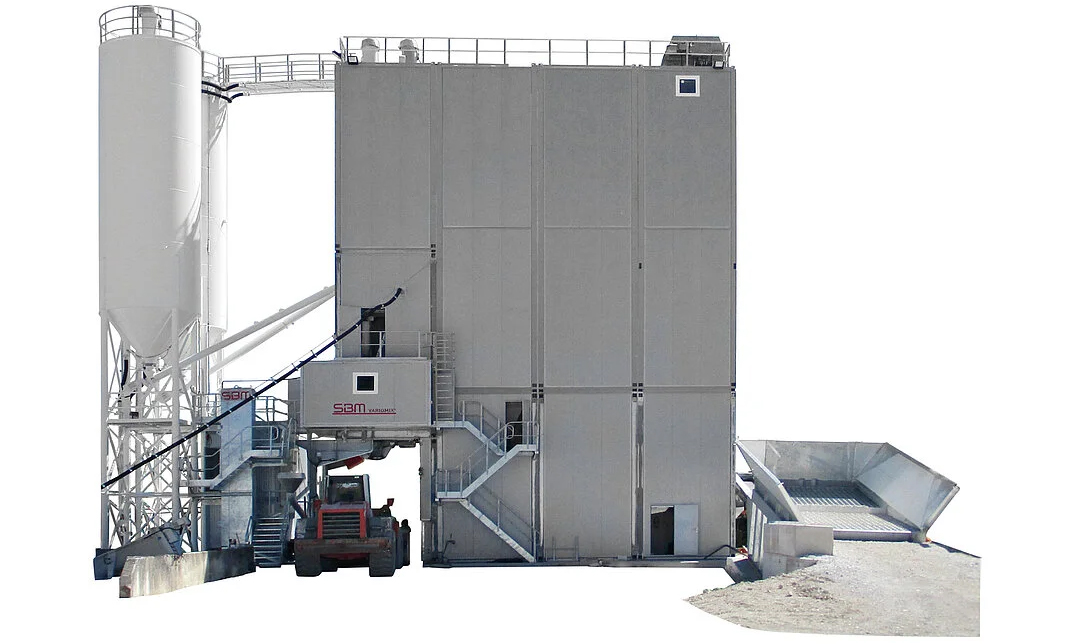

VARIOMIX®
Compact & efficient for urban areas
VARIOMIX® is the ideal concrete mixing plant for urban construction and confined spaces. With minimum space requirements, high performance and maximum flexibility, this plant perfectly fits to narrow urban construction sites. The sophisticated modular design with pre-installed units enables quick start-up. It also impresses with three parallel concrete delivery points - for truck mixer, crane bucket feed and concrete pump - ensuring maximum efficiency and flexibility on-site.
Integrated Cement Silos
Modularly expandable Aggregate Storage
Integrated Bucket Elevator
Installation on Mobile Foundations
Up to 6 Additional Cement Chambers
Mixing Units with Planetary Mixer and Twin-shaft Mixer
Integrated Cement Silos
Modularly expandable Aggregate Storage
Integrated Bucket Elevator
Installation on Mobile Foundations
Up to 6 Additional Cement Chambers
Mixing Units with Planetary Mixer and Twin-shaft Mixer
Technische Daten
| VARIOMIX® | 1200 | 2000 | 2500 |
|---|---|---|---|
| Output capacity of hardened concrete [m³/h] | 50 | 90 | 115 |
| Mixer output of hardened concrete [m³/batch] | 1,25 | 2,00 | 2,50 |
| Filling volume mixer [l/batch] | 1880 | 3000 | 3750 |
| Transport width [m] | 3,50 | 3,50 | 3,50 |
| TYP | 200 V | 300 V | 400 V |
|---|---|---|---|
Model | VM2 | VM4 | VM5 |
Width [m] | 3,50 | 3,50 | 3,50 |
Standard [m³] | 4 x 50 | 6 x 50 | 8 x 50 |
| Storage volume [m³] | 200 | 300 | 400 |
| Bins | 4 | 6 | 8 |
