LINEMIX®
maximum flexibility and powerful performance

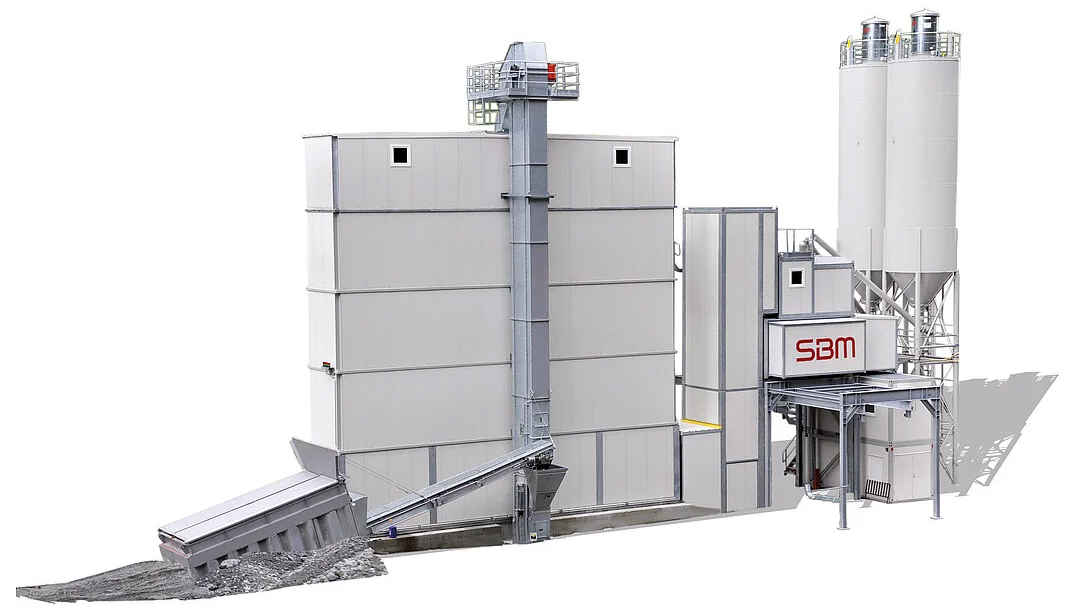

Under the motto “Flexibility meets performance”, the mobile LINEMIX® series stands for maximum efficiency and flexibility. The innovative modular concept ensures quick relocation, while the cleverly planned spaciousness and the maintenance-friendly design make its operation as convenient as that of a stationary plant. High-quality components guarantee reliable production and maximum value stability. Depending on requirements, LINEMIX® can be equipped with a EUROMIX® feed hopper or a container high hopper.
Truck Hopper - Mobile or Stationary
Feeding of Mixing Unit with Skip Hoist or Belt Conveyor
Integrated ISO Cladding
Ready-For-Use Interfaces for Heating, Cooling and Fibre Dosing
Container Hopper 410 H
Modules Installed Ready for Operation
Truck Hopper - Mobile or Stationary
Feeding of Mixing Unit with Skip Hoist or Belt Conveyor
Integrated ISO Cladding
Ready-For-Use Interfaces for Heating, Cooling and Fibre Dosing
Container Hopper 410 H
Modules Installed Ready for Operation
Technische Daten
| LINEMIX® | 3000 | 4000 | 4500 |
|---|---|---|---|
Output capacity of hardened concrete [m³/h] | 130 | 170 | 190 |
Mixer output of hardened concrete [m³/batch] | 3,00 | 4,00 | 4,50 |
Filling volume mixer [l/batch] | 4500 | 6000 | 6750 |
| Transport width [m] | 3,00 | 3,00 | 3,00 |
| TYP | 104 L | 168 L | 184 L | 410 H | 540 H |
|---|---|---|---|---|---|
Transport width [m] | 3,00 | 3,00 | 3,50 | 3,00 | 3,00 |
Standard [m³] | 4 x 26 | 4 x 42 | 4 x 46 | 4 x 103 | 4 x 135 |
Storage volume [m³] | 104 | 168 | 184 | 410 | 540 |
Bins | 4 | 4 -7 | 4 - 8 | 4 - 8 | 4 - 8 |
options
- Feed hopper instead of high hopper
- Country-specific equipment
- Extendable access stairs
- and much more...
